S5 Permanent KeySafe user guideUpdated 2 months ago

For installation and coding advice, follow the below step-by step instructions.

A PDF version of the user guide is available for download at the bottom of this page.

Kidde S5 Permanent KeySafe™ is a convenience product, not a security product.

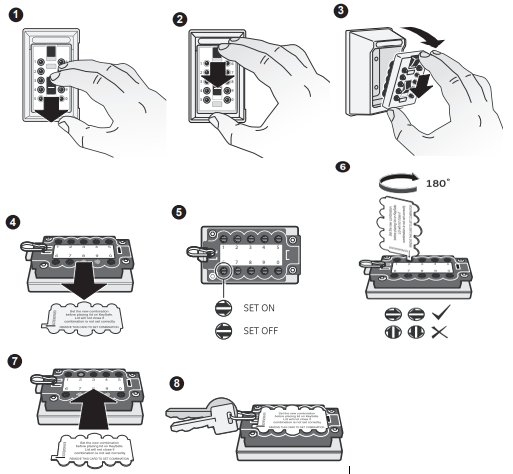

A. Setting your combination

Your Key Safe does not have a pre-set combination. You select your own combination.

Each number in a combination can only be used once.

Do not use a number combination that can be easily guessed, such as telephone numbers or birthdays.

Use five to six numbers in your combination.



B. Testing your combination

1. Enter your number combination (each button pressed must click when pushed down).

2. Press down the OPEN button. If it has been set correctly, the OPEN button will slide down fully.

If it has been incorrectly set, the OPEN button will not slide down fully. When this happens DO NOT return the lid to the key box. Instead push down the CLEAR button and refer to the pictures in section A. Setting your combination.



C. Mounting your KeySafe

1. Mount the KeySafe onto the brickwork, preferably in a discrete location.



The S5 Permanent KeySafe is part of our Classic range, the user guide in pdf format is available to download here.

Classic KeySafe user guide.pdf4.8MB
